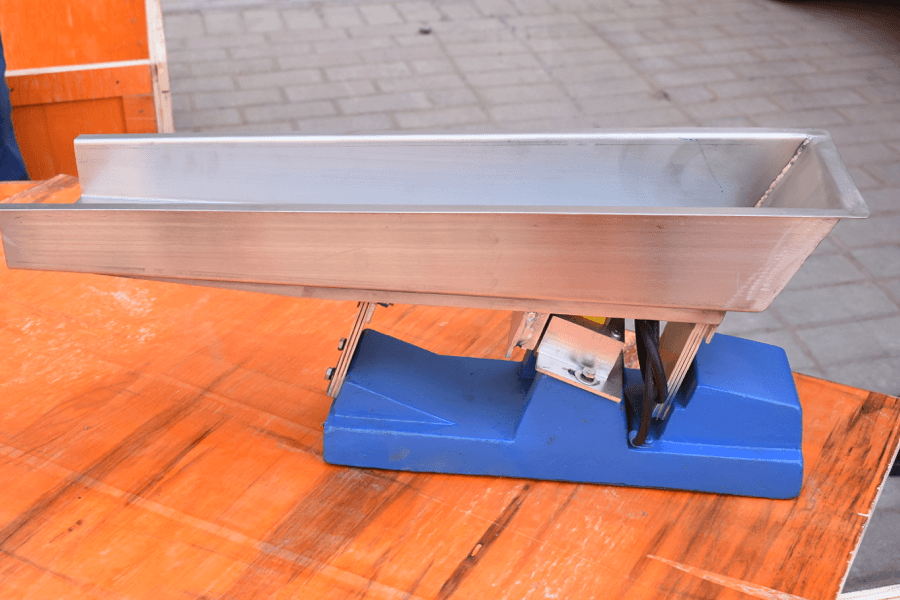

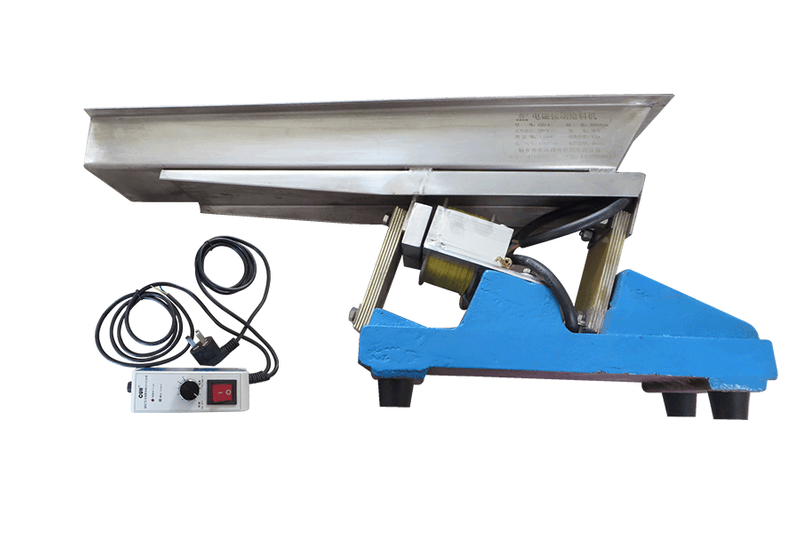

It is a new type of feeding equipment, widely used in mining, metallurgy, coal, building materials, chemical, electric power, food and other industries. It adapts to automatic batching, quantitative packaging and automatic control.
Uniformly and quantitatively feeding:
It is used for transmitting the massive, granular and powdered materials from storage silo to the stored material equipment uniformly and quantitatively.
Adjustable capacity: using controller to change the vibration at any time.
Easy operation: simple structure and automatic feeding makes easy to operate.
Low cost of maintenance:
Simple structure, less easily damaged components and electromagnetic excitor ensure long service time, reduce the cost of maintenance.
High adaptation
Electromagnetic feeder is made of stainless steel or carbon steel plate. It is applicable for conveying high temperature, severe abrasion and corrosive materials, meet customer’s high demand.
Environment-friendly
Small size; less raw material; less power consumption; low noise and dust-free processing environment provide workers with healthy working environment.
Parameters
Model | Capacity (t/h) | Dual amplitude (mm) | Rpm (r/min) | Voltage (V) | Power (W) | Weight (kg) |
GZV1 | 0.1 | 1.5 | 3000 | 220 | 5 | 7 |
GZV2 | 0.5 | 8 | 10 | |||
GZV3 | 1 | 20 | 17 | |||
GZV4 | 2 | 25 | 22 | |||
GZV5 | 4 | 30 | 32 | |||
GZV6 | 6 | 50 | 53 |
Note: The above capacity is based on density 1.6t/m3.
Model | B | B1 | B2 | B3 | L | L1 | L2 | H | H1 | H2 |
GZV1 | 40 | 60 | 50 | 80 | 200 | 273 | 95 | 20 | 155 | 120 |
GZV2 | 60 | 80 | 50 | 80 | 300 | 374 | 95 | 30 | 168 | 120 |
GZV3 | 80 | 110 | 60 | 100 | 400 | 480 | 224 | 40 | 222 | 160 |
GZV4 | 100 | 130 | 70 | 120 | 500 | 568 | 310 | 50 | 256 | 190 |
GZV5 | 120 | 150 | 70 | 120 | 550 | 630 | 310 | 60 | 295 | 190 |
GZV6 | 200 | 240 | 120 | 180 | 600 | 760 | 440 | 70 | 300 | 220 |
